Choosing the Right Hardware for Wire Rope Cables: Swages, Thimbles, and More
In the world of rigging, selecting the appropriate hardware for wire rope cables is a critical decision that can significantly impact safety, efficiency, and longevity. Whether you're working on a construction site, in a marine environment, or managing industrial operations, understanding the nuances of wire rope components and their accompanying hardware is essential. This comprehensive guide will delve into the intricacies of swages, thimbles, and other crucial elements, providing you with the knowledge to make informed choices for your rigging needs.
Understanding Wire Rope Components
Wire rope is a marvel of engineering, consisting of individual wires meticulously twisted into strands, which are then wound around a core to form the rope. The construction type plays a pivotal role in determining the rope's characteristics. For instance, the 1x19 construction, comprising 19 wires in a single strand, offers exceptional stiffness and abrasion resistance, making it ideal for static applications like guy wires. On the other hand, the 7x19 construction, with seven strands of 19 wires each, provides superior flexibility, perfect for applications involving pulleys or sheaves.
The core of the wire rope also influences its performance. Fiber cores (FC) offer enhanced flexibility but sacrifice some strength, while Independent Wire Rope Cores (IWRC) provide increased strength and heat resistance. Understanding these fundamental components is crucial when selecting the appropriate hardware for your specific application.

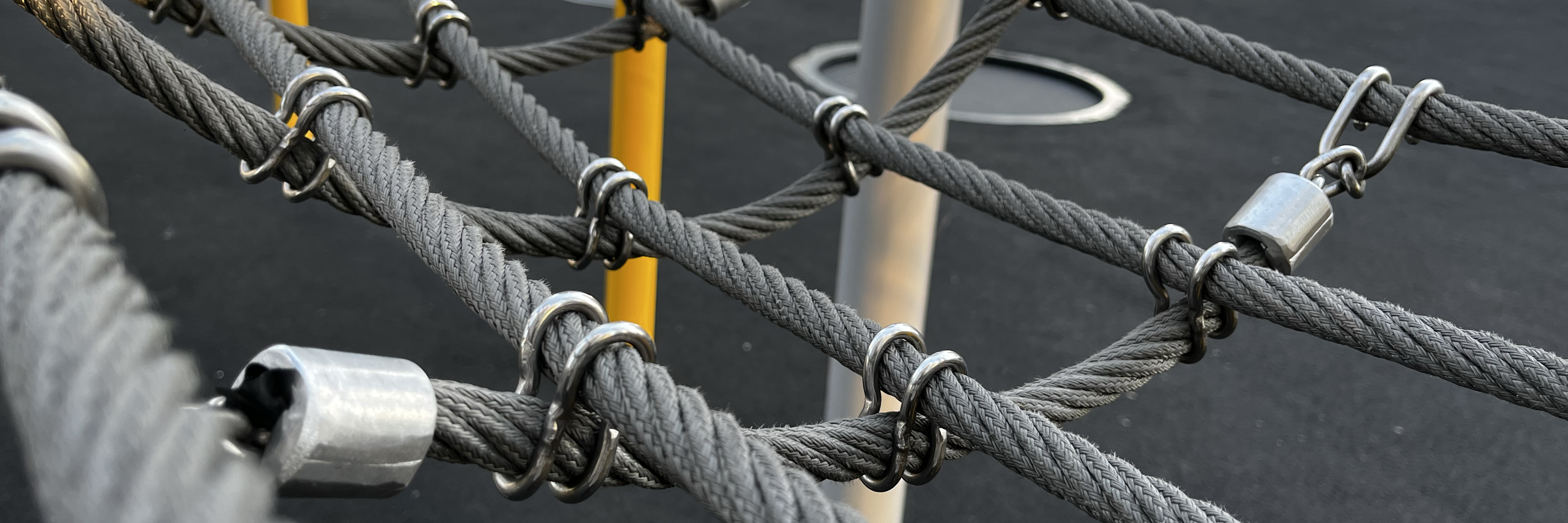

Swages: The Permanent Solution
Swages, also known as ferrules, are the go-to choice for creating permanent end fittings on wire ropes. These small but mighty components come in various types, including oval sleeves for general-purpose use, stop sleeves for creating precise stops along the rope, and duplex sleeves for joining two wire ropes. The swaging process involves carefully selecting the right size swage for your wire rope diameter, inserting the rope, and using a specialized swaging tool to compress the ferrule onto the wire rope.
The result is a clean, professional-looking connection that boasts impressive strength and reliability. Swages excel in high-load applications where a secure, non-removable connection is paramount. However, it's crucial to remember that proper installation is key to achieving the full benefits of swaged connections.
Thimbles: Protecting Your Investment
Thimbles play a vital role in preserving the integrity of your wire rope. These metal fittings are inserted into the loop of a wire rope, preventing wear and deformation that can occur under load. Available in standard, heavy-duty, and open varieties, thimbles cater to a wide range of applications and rope sizes.
Installing a thimble involves forming a loop in the wire rope, inserting the thimble, and securing it with either a swage or wire rope clips. The benefits of using thimbles are numerous: they prevent wire rope deformation, extend the life of your rope by reducing wear, and provide a smooth bearing surface for attachments. In essence, thimbles are an investment in the longevity and performance of your wire rope system.
Wire Rope Clips: Versatility at Its Best
For those seeking a more flexible solution, wire rope clips offer an excellent alternative to permanent swaged connections. These versatile components come in various types, including the common U-bolt clips, the user-friendly fist grip clips, and the high-strength double saddle clips. The beauty of wire rope clips lies in their adjustability and reusability, making them ideal for temporary setups or situations where frequent adjustments are necessary.
Proper installation of wire rope clips is crucial for ensuring their effectiveness. This process involves applying the first clip one base width from the dead end of the wire rope, with the saddle on the live end, and then spacing additional clips at intervals of 6-7 times the rope diameter. While wire rope clips offer great flexibility, it's important to note that they generally provide lower strength compared to swaged connections and require periodic inspection and re-tightening to maintain their integrity.
Turnbuckles: Fine-Tuning Your Setup
Turnbuckles are the unsung heroes of tension adjustment in wire rope systems. These clever devices consist of a threaded body with end fittings that can be hooks, eyes, or jaw ends. By rotating the body, you can increase or decrease the tension in your wire rope with precision. This makes turnbuckles invaluable in applications requiring exact tension adjustments, such as guy wires and suspension systems.
When using turnbuckles, it's crucial to select one rated for your intended load and to follow proper adjustment procedures. Never exceed two-thirds of the total thread length for adjustment, and always use lock nuts or safety wire to prevent unintended loosening. With proper use, turnbuckles can significantly enhance the performance and safety of your rigging setup.
Choosing the Right Hardware: A Holistic Approach
Selecting the appropriate hardware for your wire rope cables requires a comprehensive understanding of your specific application and environment. Consider the nature of the loads you'll be dealing with – are they static, like in a guy wire system, or dynamic, as in lifting operations? Environmental factors such as temperature extremes, chemical exposure, and UV radiation can significantly impact your hardware choices.
Material selection is another critical factor. While carbon steel offers strength, it's susceptible to corrosion. Galvanized steel provides good corrosion resistance for general use, but for harsh environments, particularly marine applications, stainless steel 316 is often the go-to choice due to its superior corrosion resistance.
Don't overlook the importance of flexibility and bend radius in your wire rope system. Proper bending prevents internal wire damage and reduces stress concentration, ultimately extending the life of your wire rope. When selecting hardware, ensure it complements your rope's minimum bend radius to maintain system integrity.
Safety and Compliance: Non-Negotiable Priorities
In the rigging industry, safety is paramount. Adhering to industry standards such as the ASME B30 series for cranes and rigging, OSHA regulations for workplace safety, and ISO standards for international compliance is non-negotiable. Implement a robust inspection regime, including daily visual checks and periodic thorough inspections, to catch potential issues before they become hazards.
Investing in proper training and certification for your team is equally important. Ensure that operators are well-versed in hardware selection and use, and consider implementing a certification program for riggers and inspectors. Staying current with industry best practices and regulations will not only enhance safety but also improve the efficiency and reliability of your rigging operations.
Conclusion: Empowering Your Rigging Operations
Choosing the right hardware for wire rope cables is a multifaceted process that requires careful consideration of numerous factors. By understanding the unique properties and applications of swages, thimbles, wire rope clips, and turnbuckles, you can make informed decisions that enhance the safety, efficiency, and longevity of your rigging systems.
Remember, the world of rigging is constantly evolving, with new technologies and best practices emerging regularly. Stay curious, continue learning, and don't hesitate to consult with experts when faced with challenging scenarios. By approaching hardware selection with diligence and expertise, you'll be well-equipped to tackle even the most demanding rigging projects with confidence.
